WasmFX: Turboshaft Suspend tag returns/params mismatch

In turboshaft's WasmFX's Suspend, the code mistakenly unpacks the tag’s returns using the tag’s parameter layout/count.

// src/wasm/turboshaft-graph-interface.cc:3968
    // Unpack tag returns. <-()
    IterateWasmFXArgBuffer(sig->parameters(), [&](size_t index, int offset) {
      DCHECK_EQ(returns[index].type, sig->GetParam(index));
      returns[index].op = this->Asm().LoadOffHeap(
          arg_buffer, offset, MemoryRepresentationFor(sig->GetParam(index)));
    });

• It iterates over sig->parameters() instead of sig->returns()
• uses sig->GetParam(index) instead of sig->GetReturn(index)
• writes into returns[index] using the parameter index/count

Because tags are a full FunctionSig (params and returns can differ):

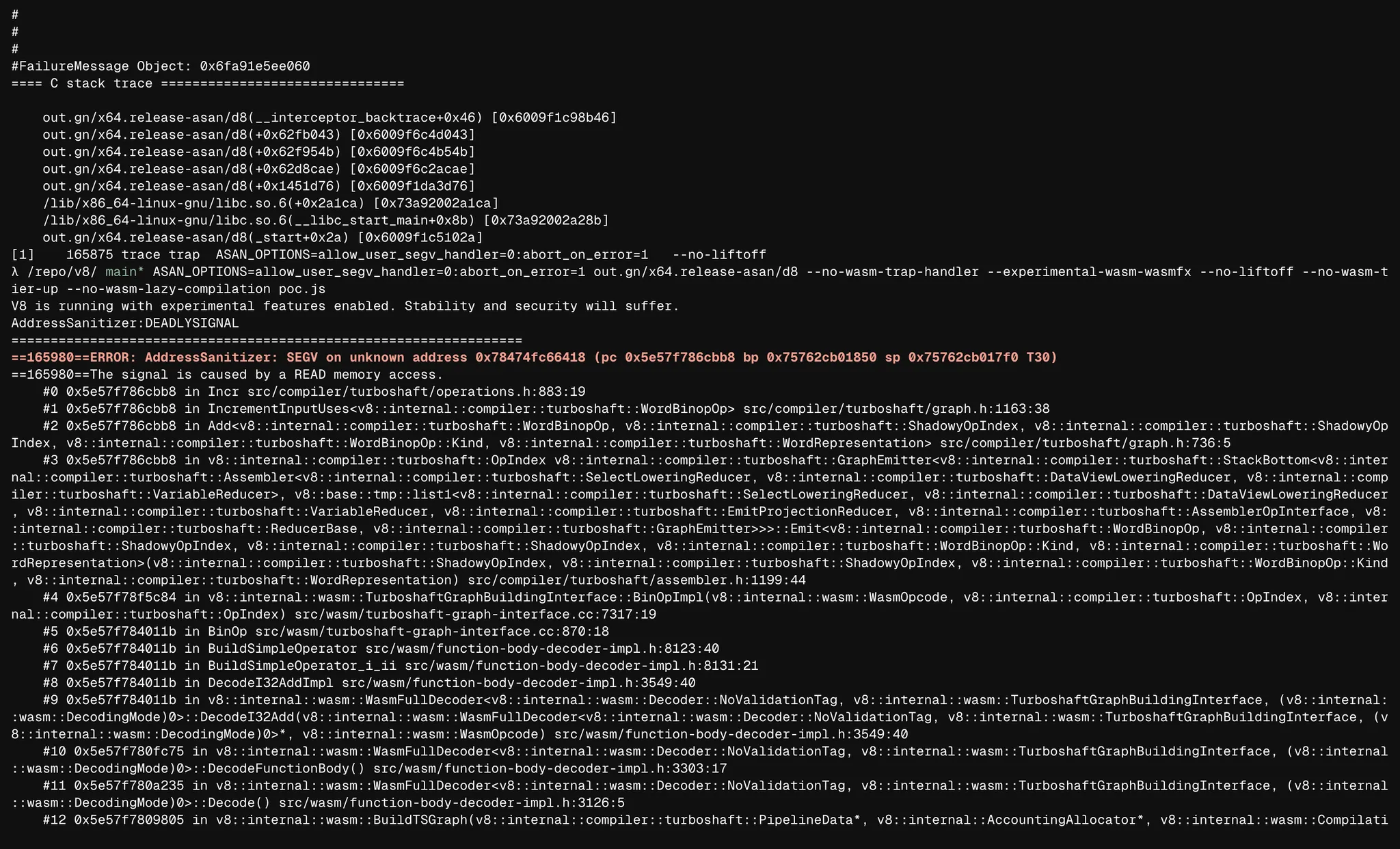

• tag_sig->parameter_count() < tag_sig->return_count(): ASan SEGV due to some returns not materialized; use of uninitialized/stale returns[i].op -> invalid OpIndex -> ASan SEGV
  • Turboshaft’s Suspend lowering materializes only parameter_count return values, leaving returns[i].op for the remaining returns uninitialized. A subsequent consumer like i32.add treats this garbage OpIndex as a valid input node, gives a SEGV of Graph::Add/IncrementInputUses under ASan.
• tag_sig->parameter_count() > tag_sig->return_count(): OOB that overwrites the returns[return_count .. param_count-1]
  • We validated this under GDB, watch returns[1].op (params=[i32,i32], returns=[i32]):
    • Hardware watchpoint 2: returns[1].op triggered
    • bt shows the write originates from the “Unpack tag returns” lambda at src/wasm/turboshaft-graph-interface.cc:3971, with index=1:
      • ... operator()(unsigned long, int) const ( ... index=1, offset=4) at ../../src/wasm/turboshaft-graph-interface.cc:3971 (see oob.watchpoint.log)

Disclose Timeline

• Jan 5, 2026 12:40 AM: Reported to Chromium
• Jan 6, 2026 01:38 AM: Assigned (p1)
• Jan 7, 2026 09:27 AM: Accepted
• Jan 7, 2026 12:05 PM: Marked as fixed.
• Jan 14, 2026 02:51 PM: Bug requires --experimental-wasm-wasmfx which is an experimental flag: Regular bug with no security impact.
